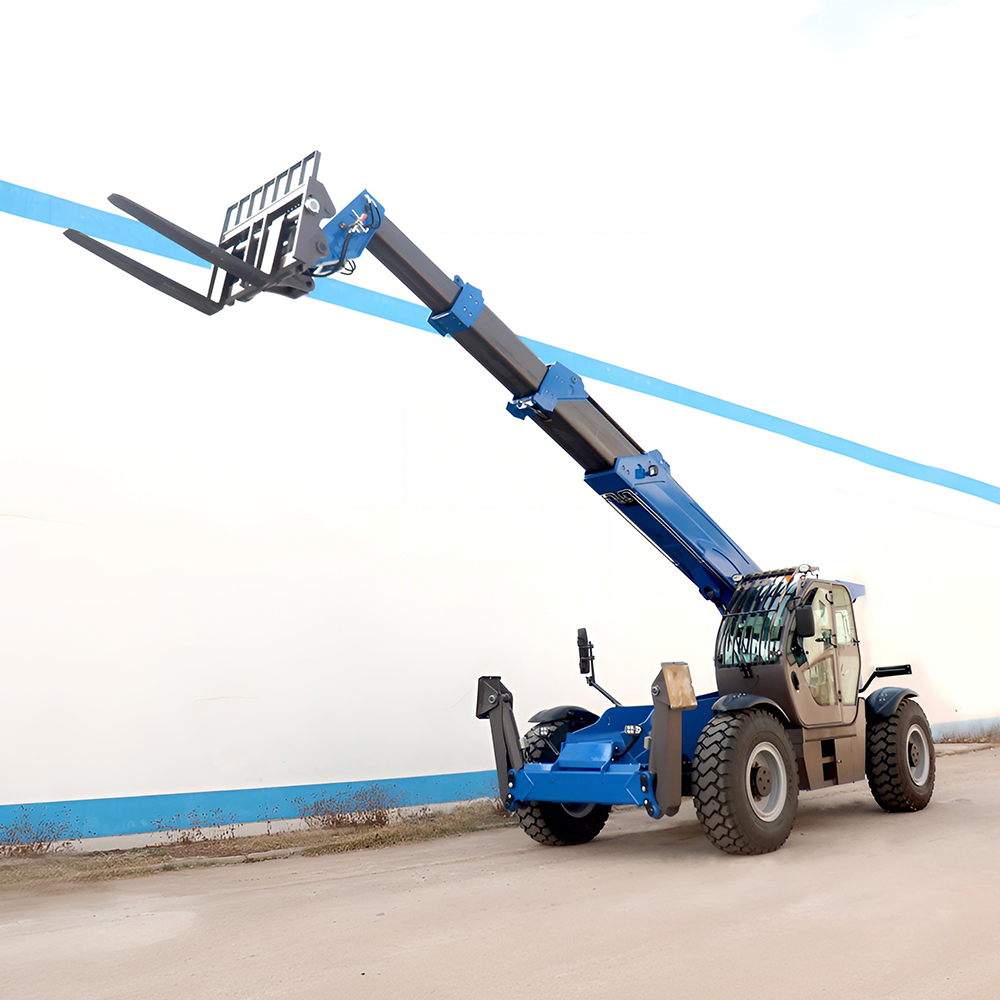

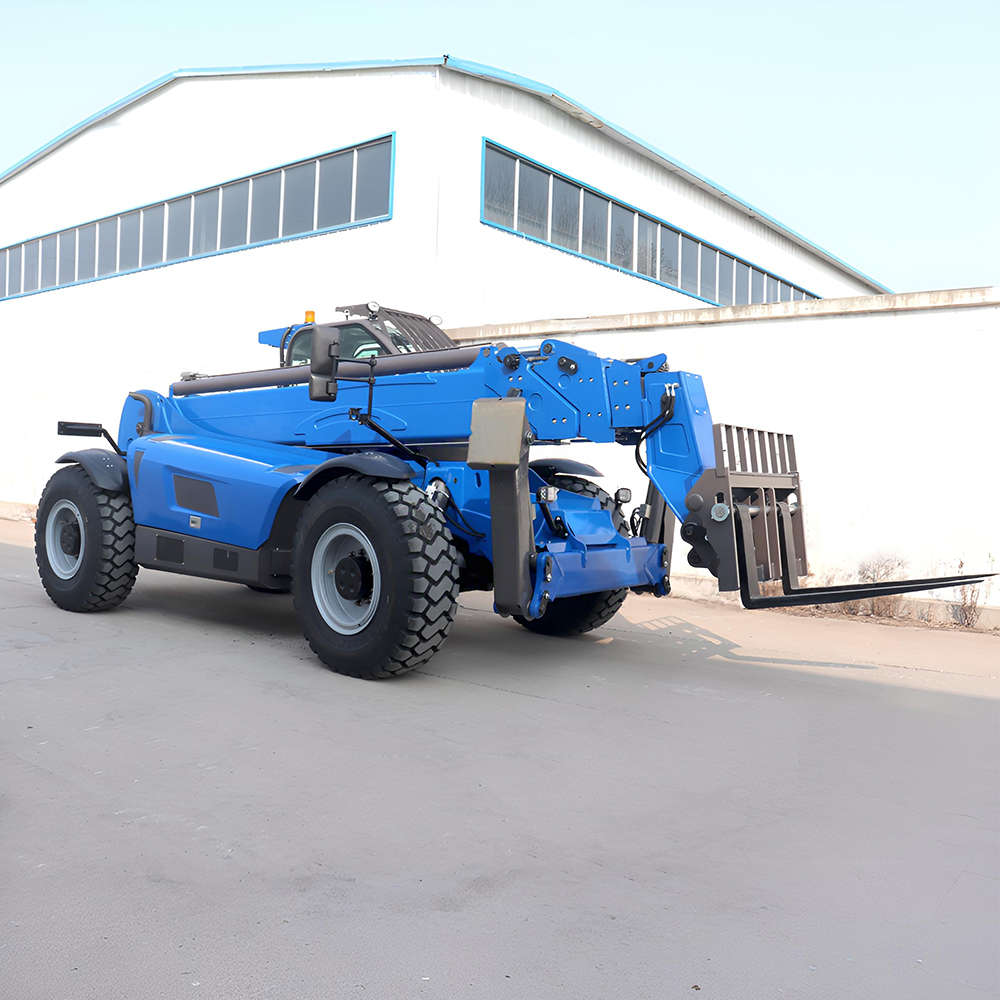

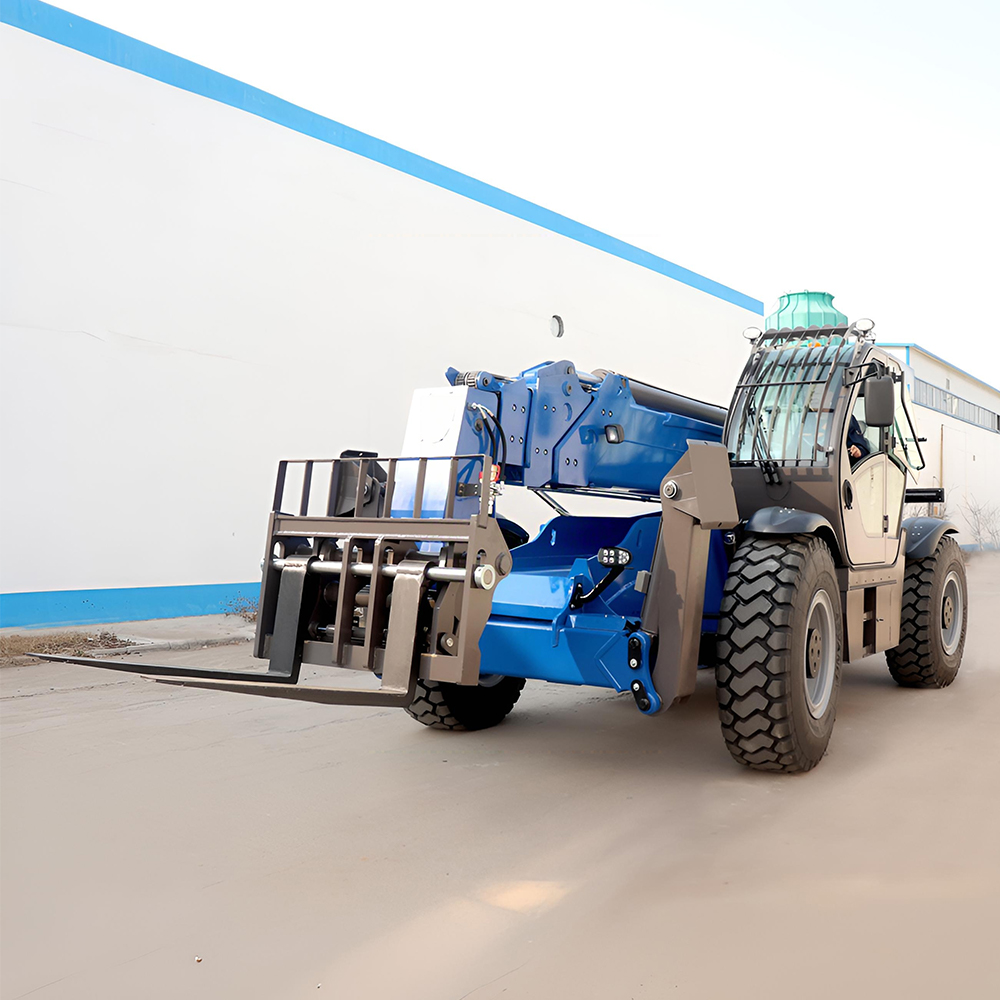

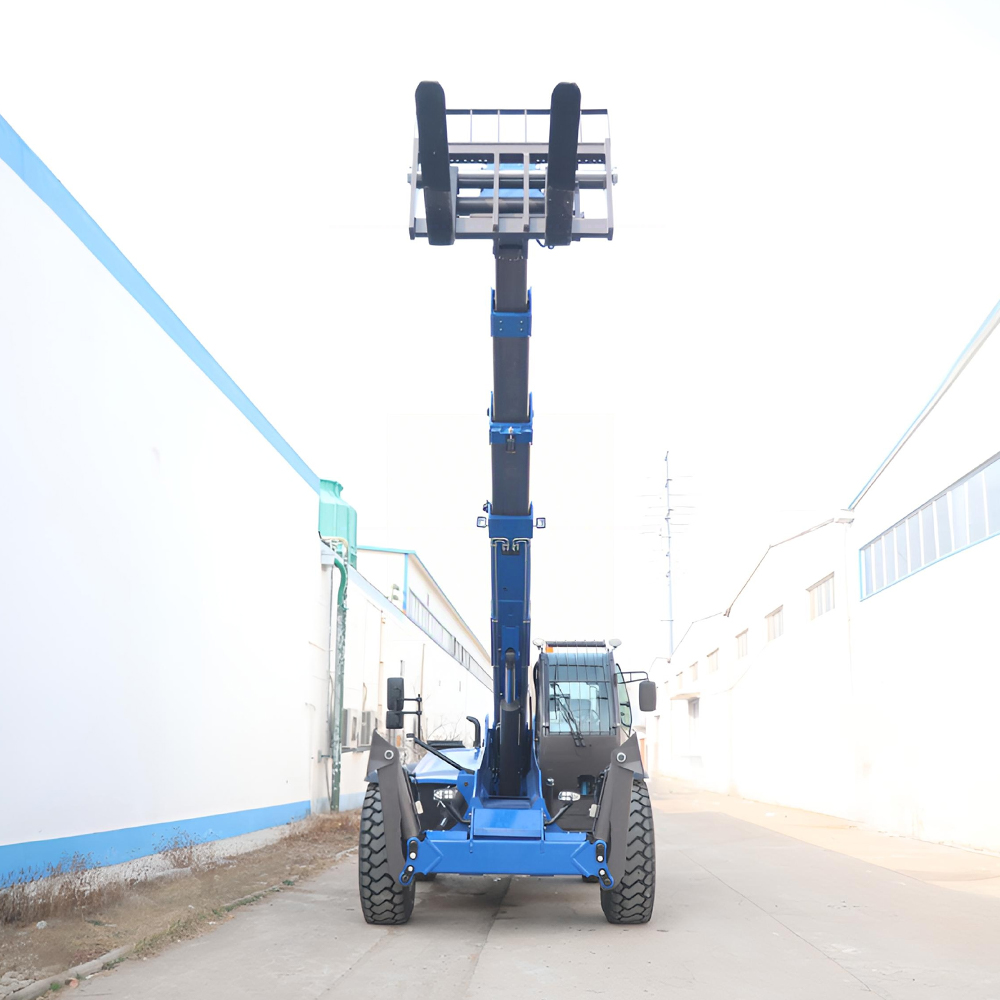

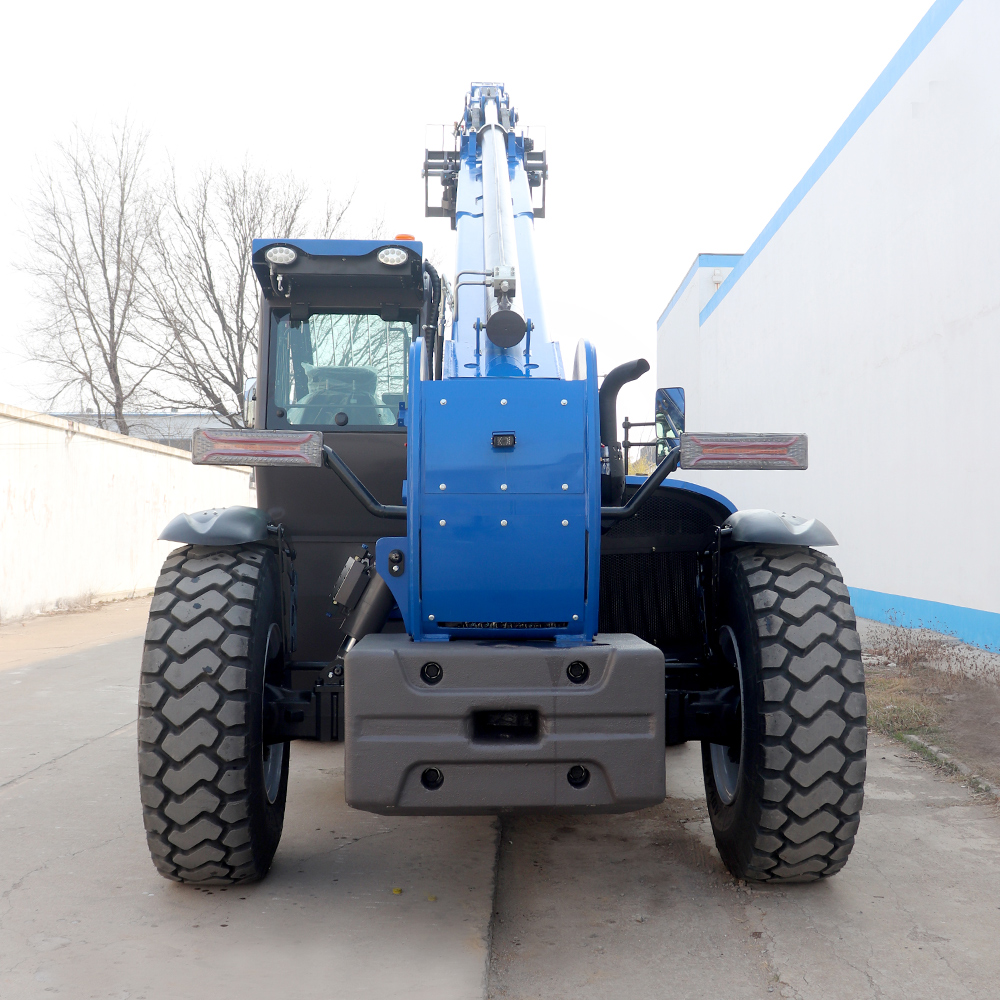

HS-T6017 Telehander
1.The telescopic forklift is four-wheel drive and equipped with large off-road tires and a robust chassis, enabling it to travel and operate stably in muddy, sandy, rugged, and other harsh road conditions.
2.The boom can extend far forward, enabling it to work at heights. Combined with its lifting capacity, it can easily lift goods to higher positions, far exceeding the capabilities of traditional forklifts.
Product Description
| Model | HS-6017 | Tilt-up angle | 12 ° |
| Max. capacity | 6000 kg | Tilt-down angle | 114 ° |
| Max. lifting height | 16.55 m | External turning radius(over tyres) | 4.1 m |
| Max. outreach | 11.2 m | Unladen weight(with fork) | 13700 kg |
| Overall length to carriage | 6.7 m | Tires type | Tubeless |
| Length to face of forks | 7.92 m | Standard tires | 440/80-24 |
| Min transport size | 5.6 m | Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Overall width | 2.35m | Lifting | 18 s |
| Track width | 1.95 m | Lowering | 14.4 s |
| Overall height | 2.55 m | Extension | 17.9 s |
| Wheelbase | 3.6 m | Retraction | 16.5 s |
| Ground clearance | 0.38 m | Crowd | 5.1s |
| Overall cab width | 0.84 m | Dump | 4 s |
