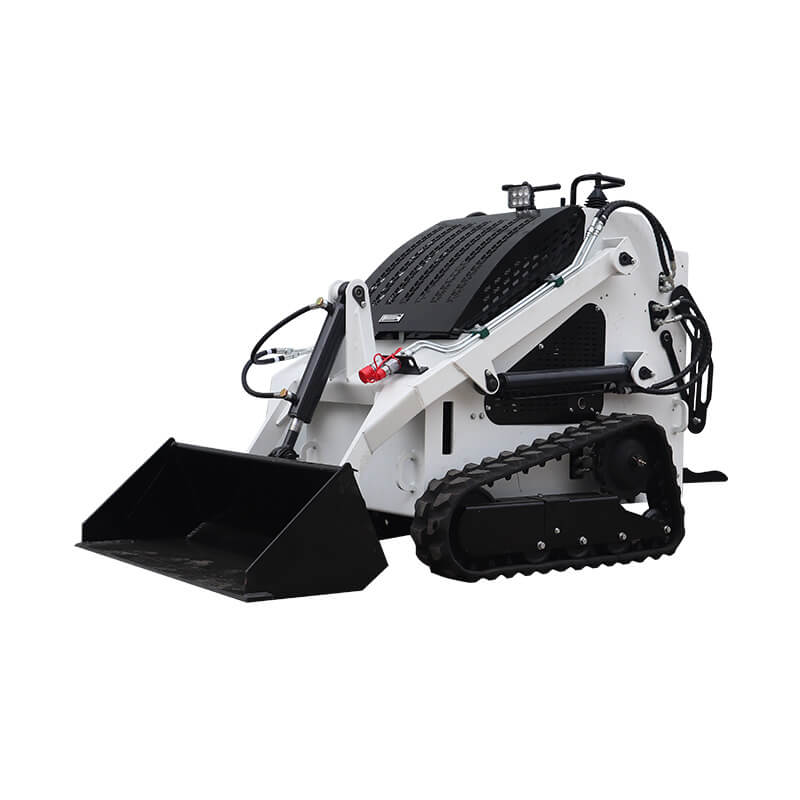

Product Description


Model480
EngineYanmar 380
Rated power20-25HP
Calibration speed2500-3000rpm
CylinderThree
Intake methodNatural
Displacement639cc
Emission StandardEuro 5/EPA
Rated load350kg
Max. load480kg
Max. rising force450KN
Bucket volume0.12m³
Walking speed0-6km/h
Working system pressure17-21bar
Fuel tank volume13L
Operating weight1200kg
Tire18*72
Max. operating height2450mm
To bucket pin height1870mm
Overall height1350mm
Bucket horizontal maximum height1810mm
Total length without accessories1680mm
Overall length with standard bucket2206mm
Max. height unloading angle34°
Unloading height1510mm
Unloading distance450mm
The flip angle of the bucket on the ground27°
Bucket flip angle at highest114°
wheelbase850mm
Ground clearance150mm
Tail length280mm
Wheel base (standard tires)720mm
Total width (standard tires)1000mm
Bucket width1000mm
