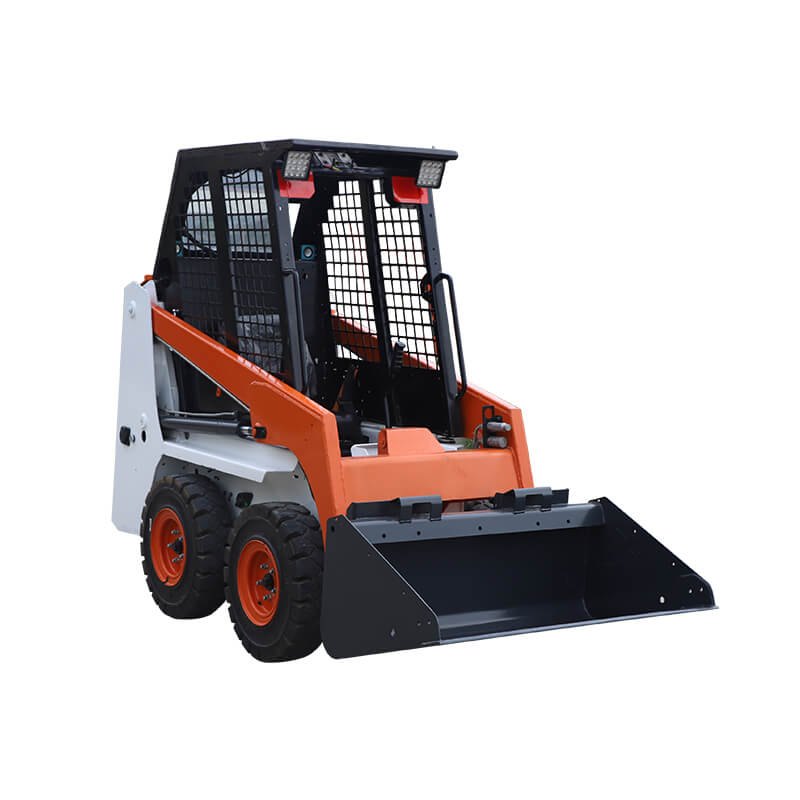

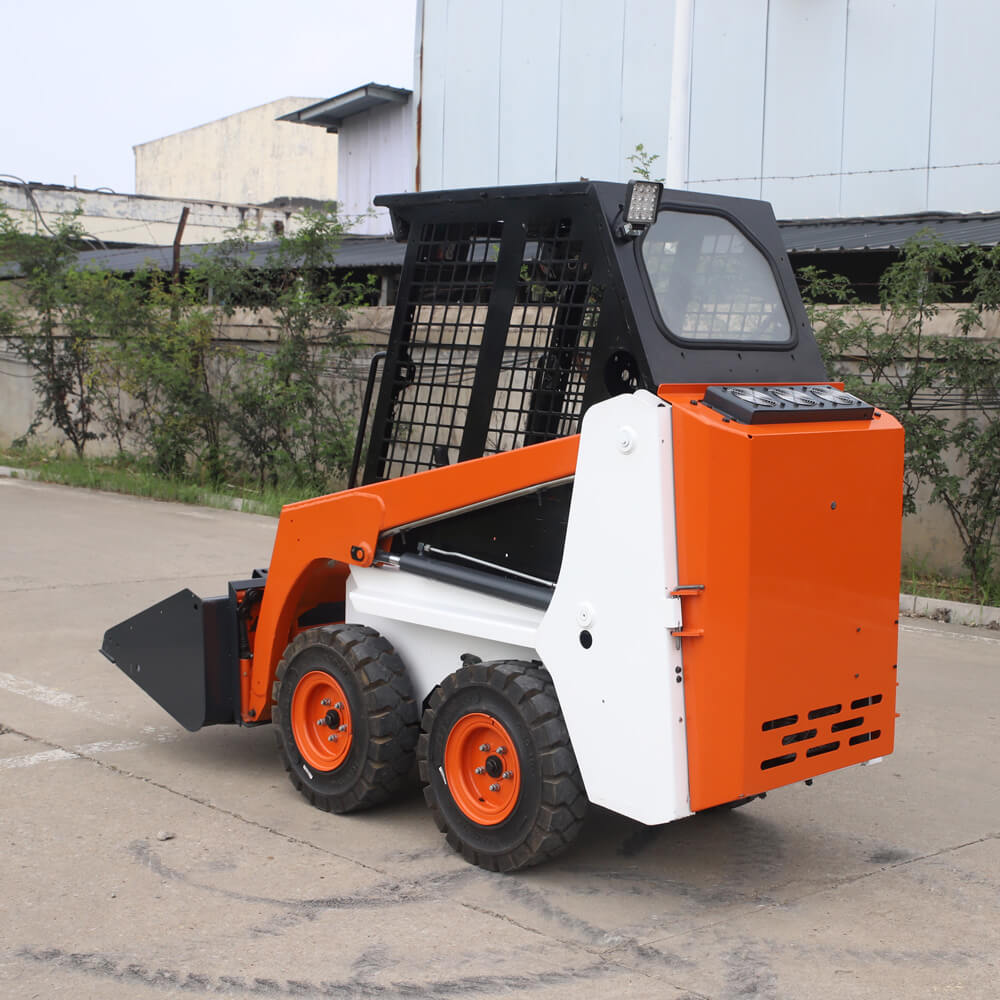

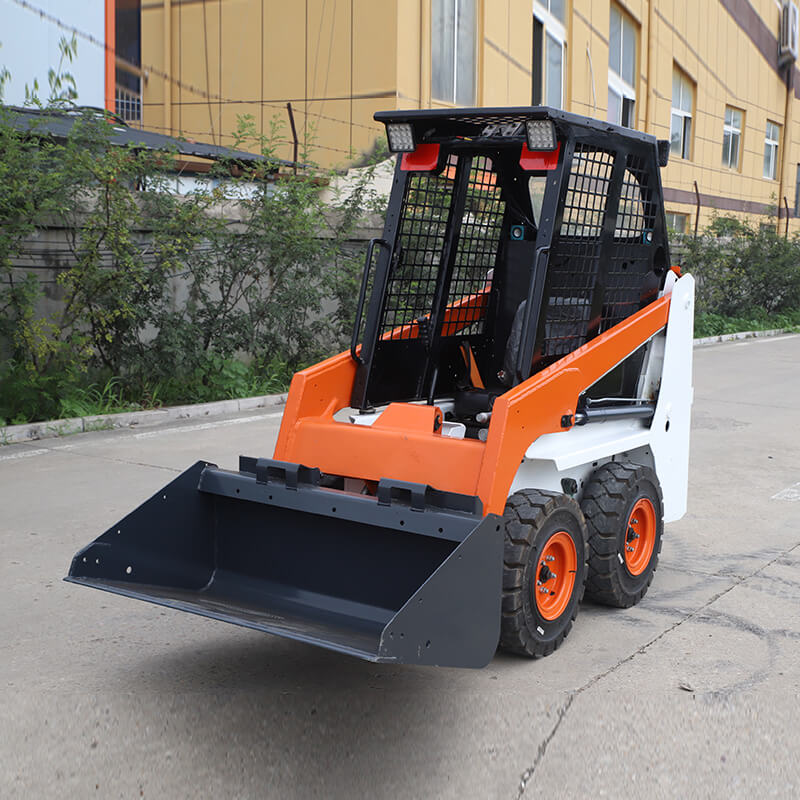

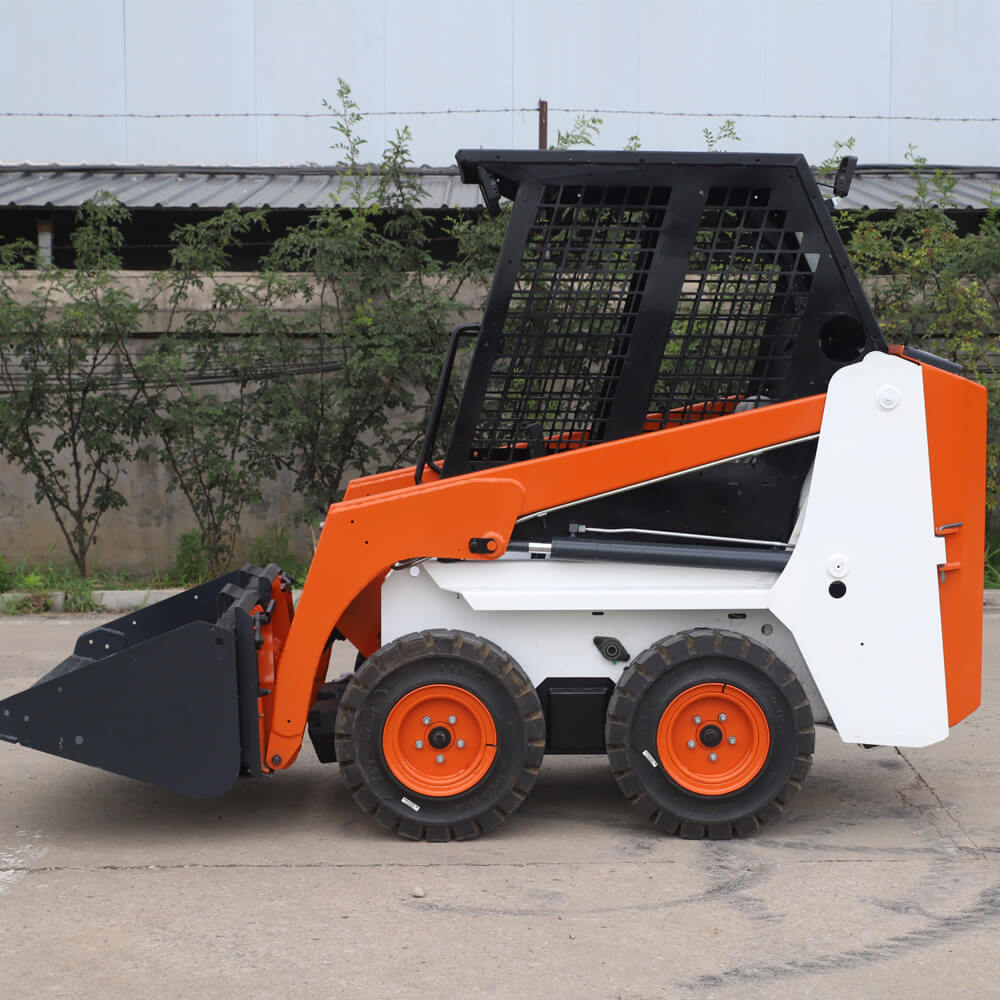

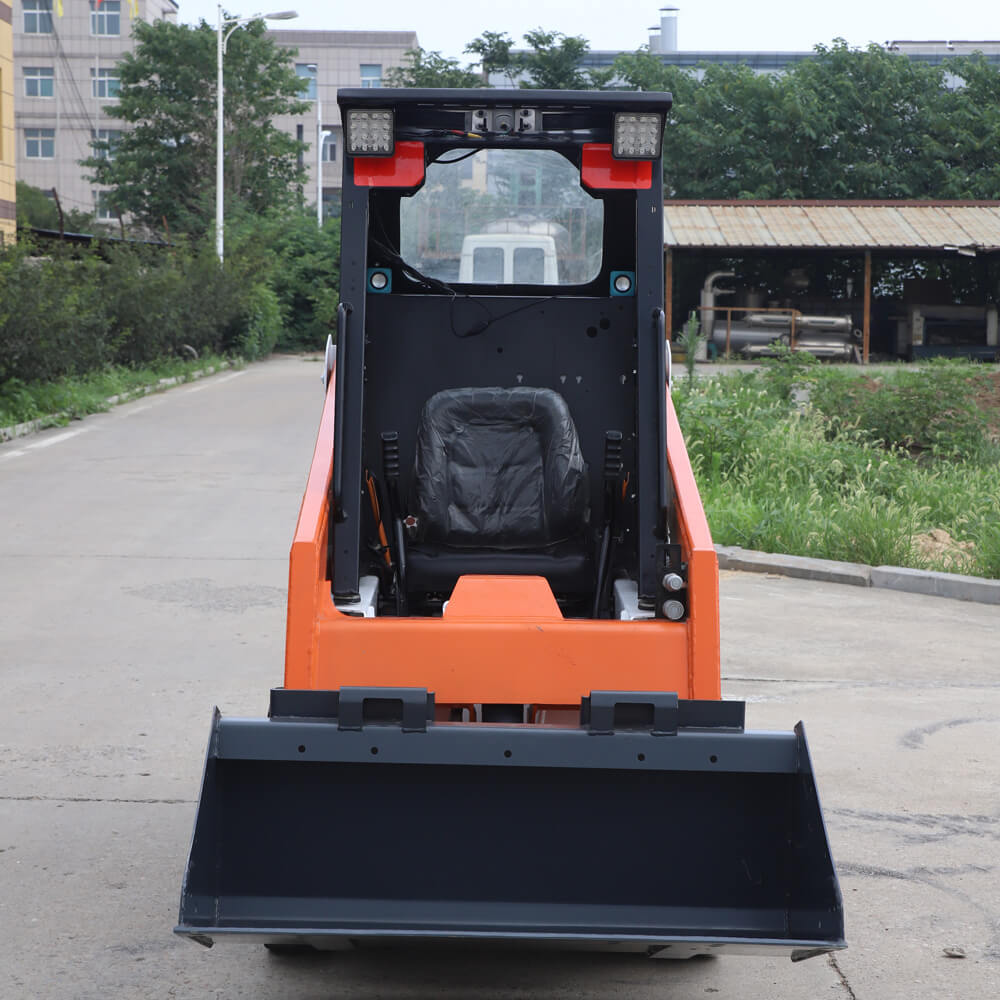

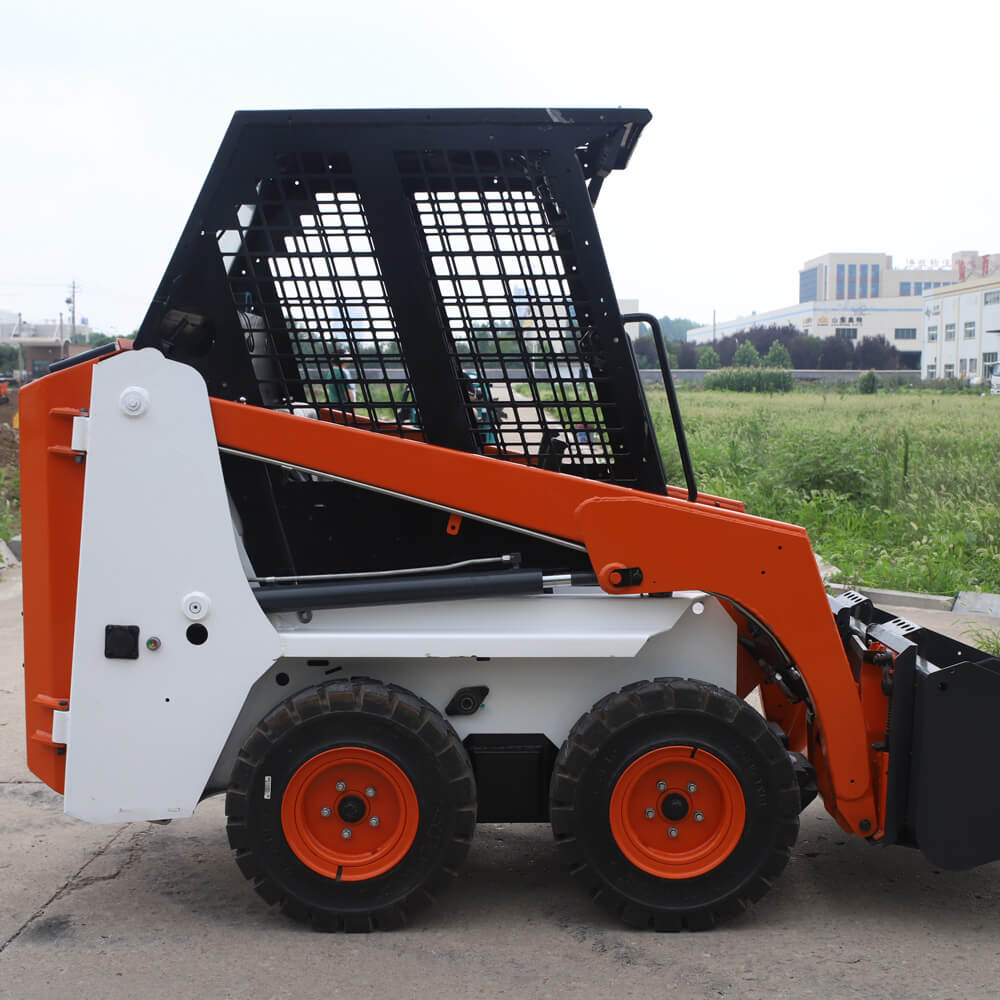

Product Description

Tipping load712kg
Rated operating capacity350kg
Pump capacity37.0 L/min
System relief at quick couplers20.7 MPa
Max. travel speed9.8 km/h
Operating weight1450kg
Shipping weight without bucket1292kg
Automotive-grade BMSRemote monitoring
Vehicle steeringDirection and speed
controlled by two hand levers
Loader hydraulics tilt and liftSeparate foot pedals
Front auxiliaryLateral movement of
right-hand steering lever
TransmissionInfinitely variable tandem hydrostatic piston
pumps, driving two fully reversing hydrostatic
Overall operating height3050mm
Height to top of cab1814mm
Dumping angle at maximum height25°
Ground clearance141mm
Overall length without standard bucket1925mm
Overall length with standard bucket2472mm
Maximum angle of flat ground22°
Unloading height1934mm
Height to bucket hinge pin2399mm
Loading distance at Max, unloading height400mm
Dumping angle at maximum height34°
Rollback of bucket at full height97°
bucket width914mm
Radius of gyration1557mm
Machine width901mm
